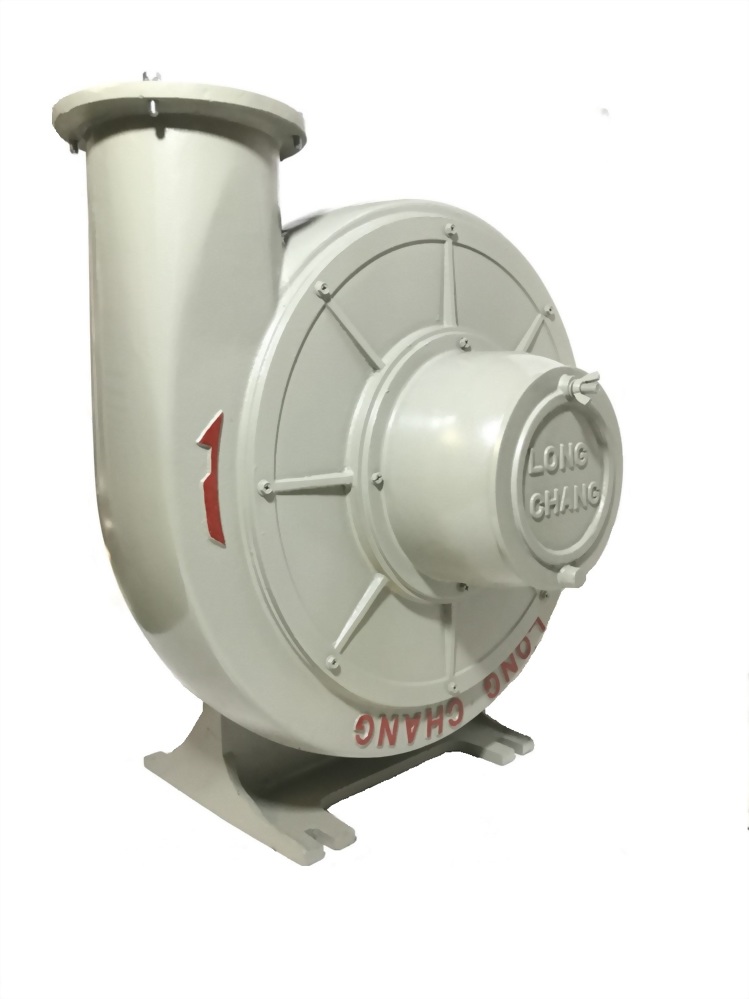

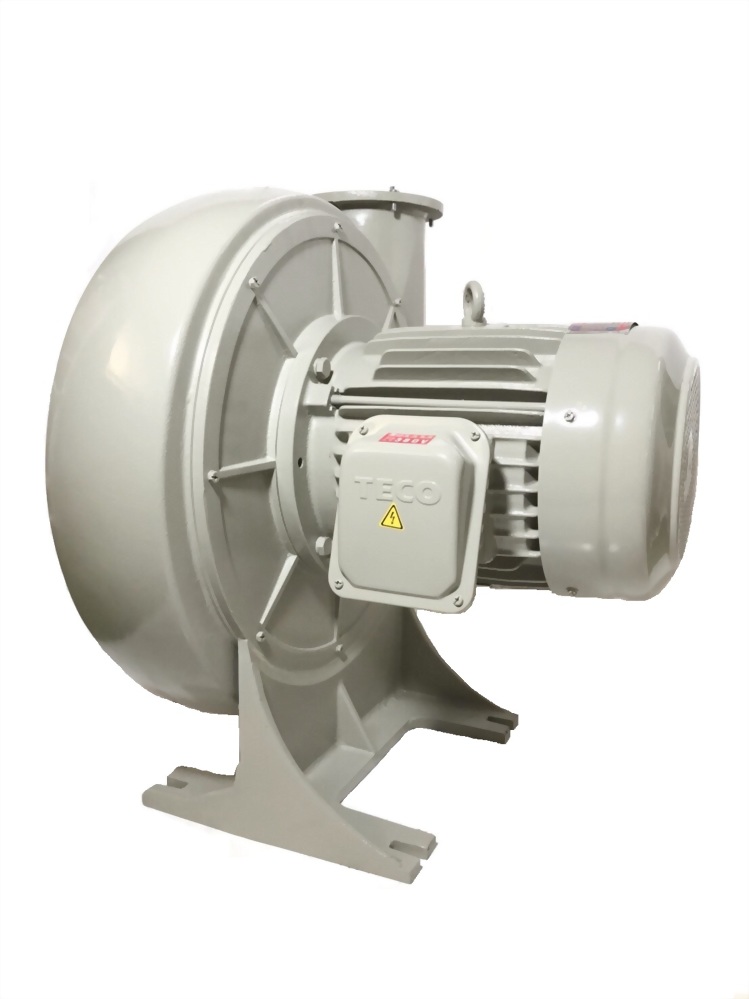

LXF-5/LXFT-5
▶ Plastic Extruders、Laminating、Blown Film Machines、conveying.
▶ Air conveying.
▶ Air conveying.
|
型式 Model |
吐出/口徑 Outlet Dimension |
馬力 Power |
定格出力 Rating |
定格電壓 Rated Voltage |
周波數 Frequency |
相數 Phase |
電流 Current |
回轉數 Speed |
風量 Air Flow |
靜壓 Pressure |
質量 Weight |
下載 Download |
|||
| mm | HP | KW | V | HZ | Ø | A | r.p.m | M³/min | CFM | mmAq | Kpa | KG | |||
| LXF-5 | 239 | 152 | 5 | 3.7 | 380 | 50 | 3 | 7.4 | 2800 | 46 | 1631 | 340 | 3.34 | 72 | |
| 220 | 60 | 13 | 3500 | 55 | 1950 | 500 | 4.9 | ||||||||
| LXF(T)-5 | 239 | 152 | 5 | 3.7 | 380 | 50 | 3 | 7.4 | 2800 | 46 | 1631 | 340 | 3.34 | 72 | |
| 220 | 60 | 13 | 3500 | 55 | 1950 | 500 | 4.9 | ||||||||
▶ Special muffler inlet design
▶ Professional impeller designed, high pressure, larger flow, Low noise, and long life.
▶ Aluminum alloy material was Widespread be use, offer light products.
▶ CE Certificate for motor, Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
▶ Special air-flow-adjust designs offer stable flows and easily control.
▶ It also can be custom-made heat-resistant type.
