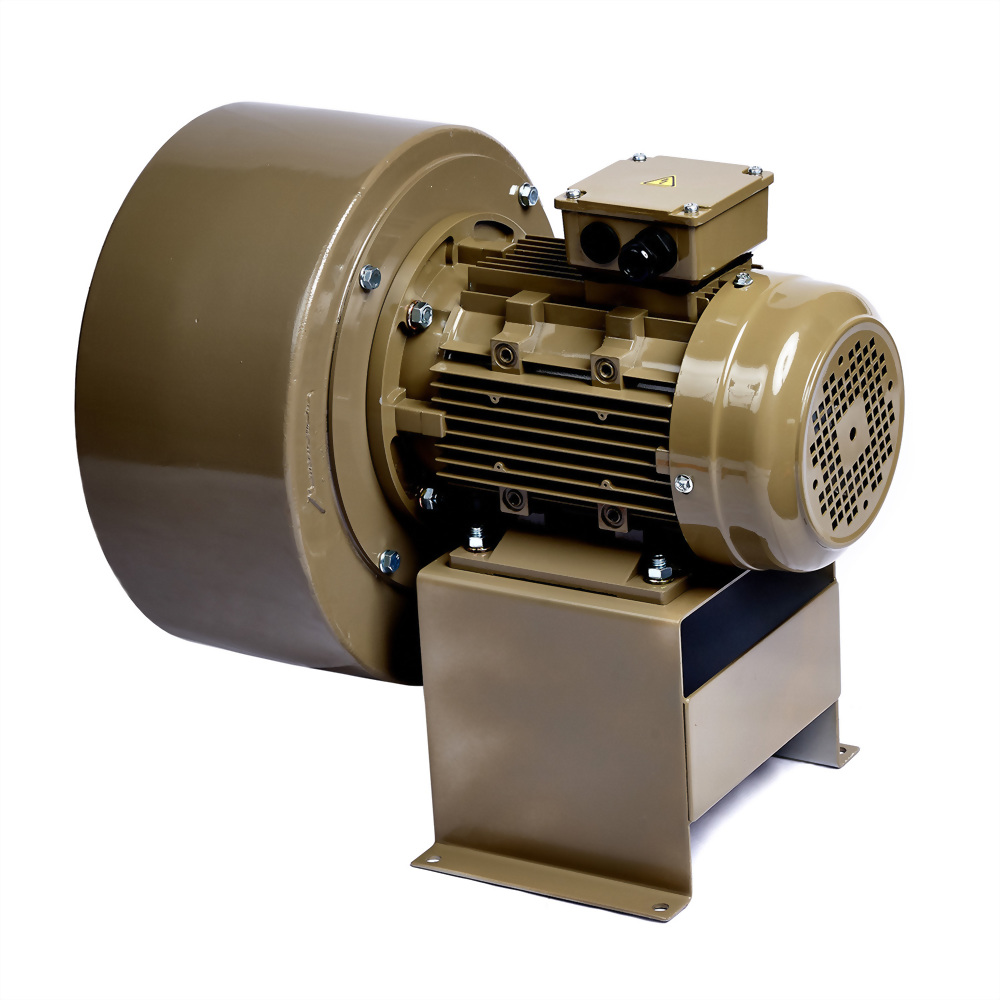

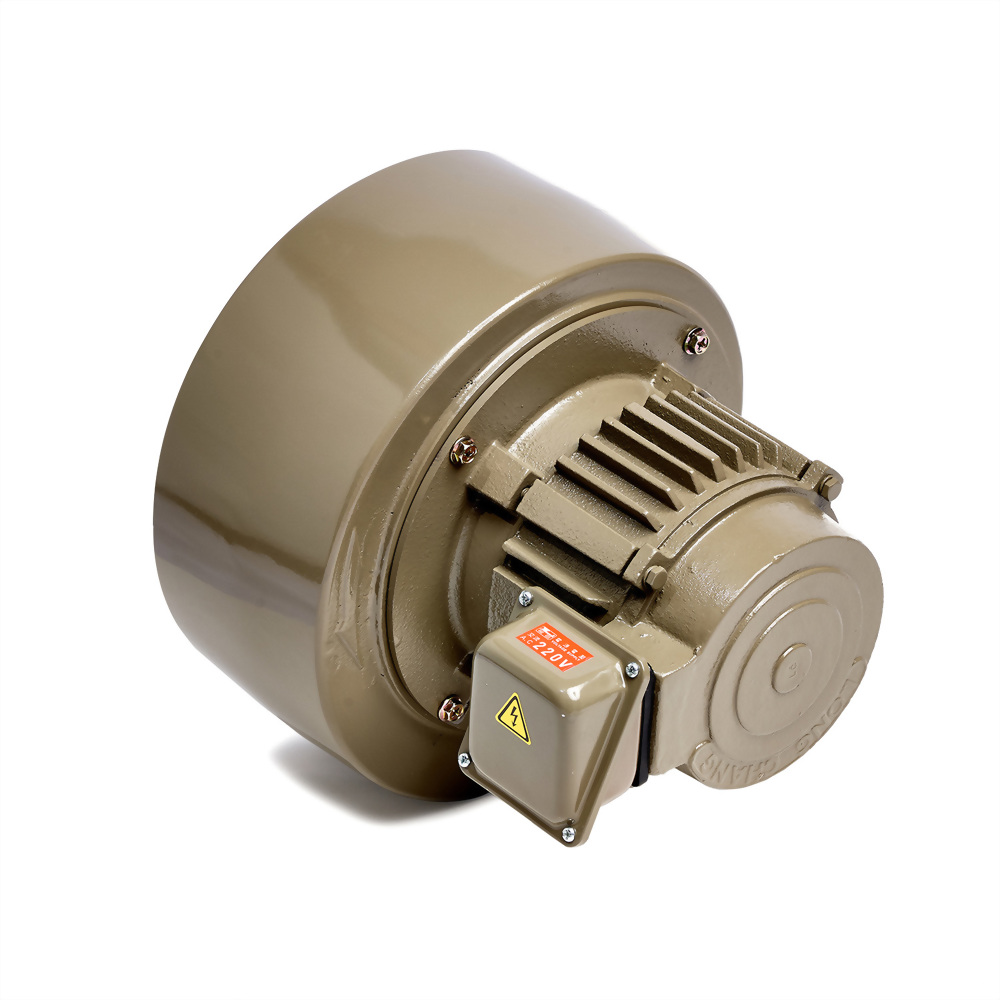

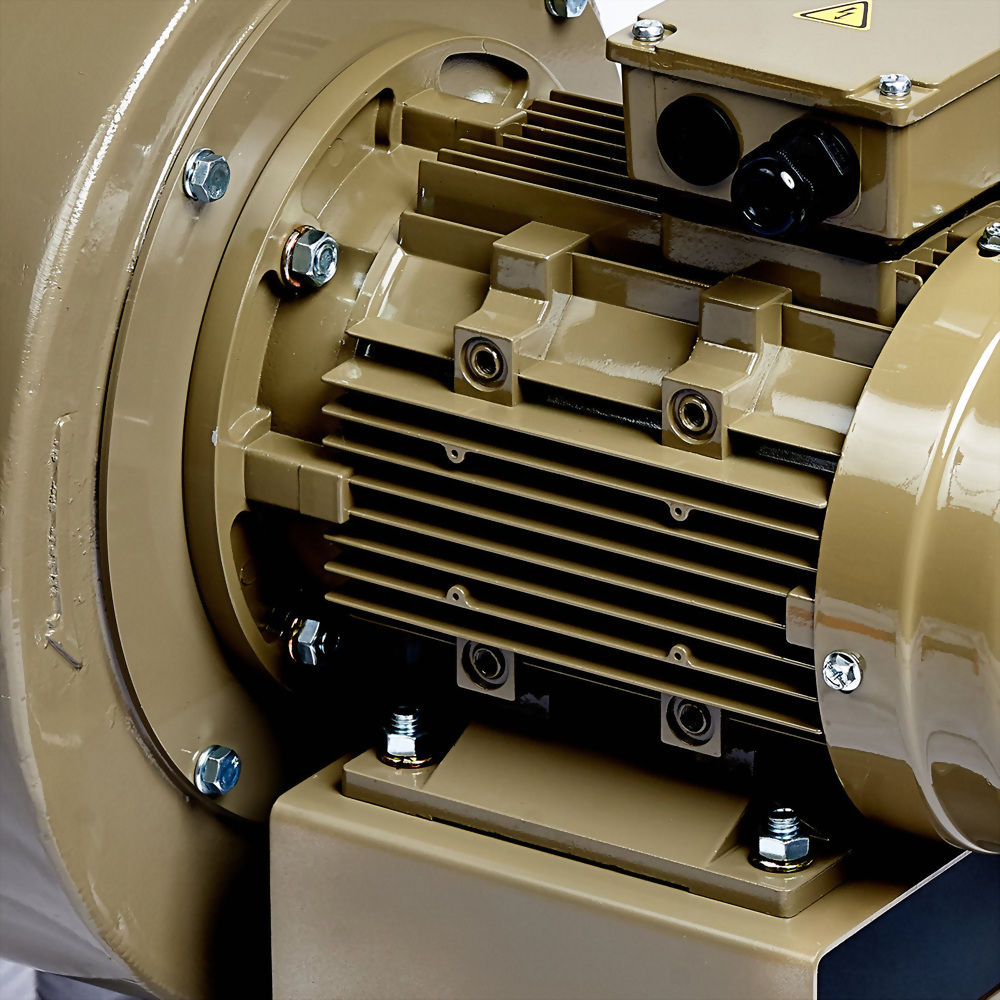

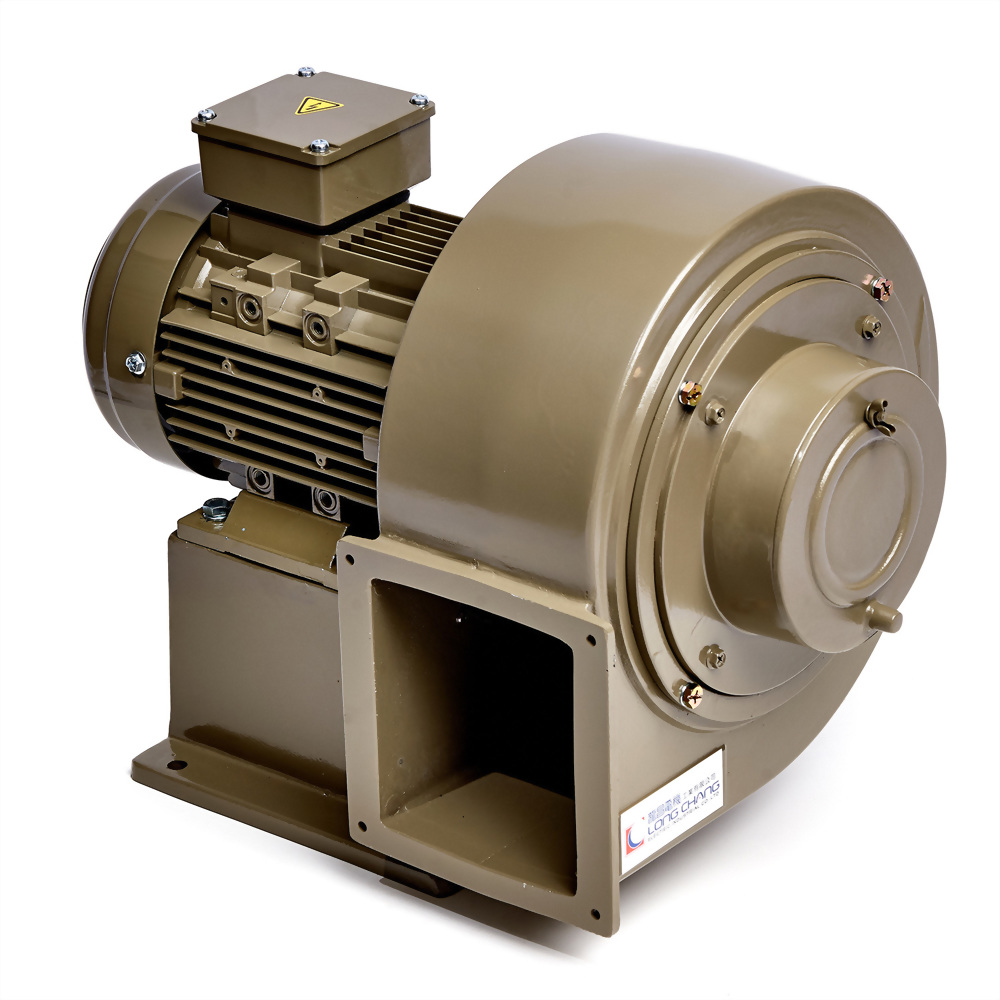

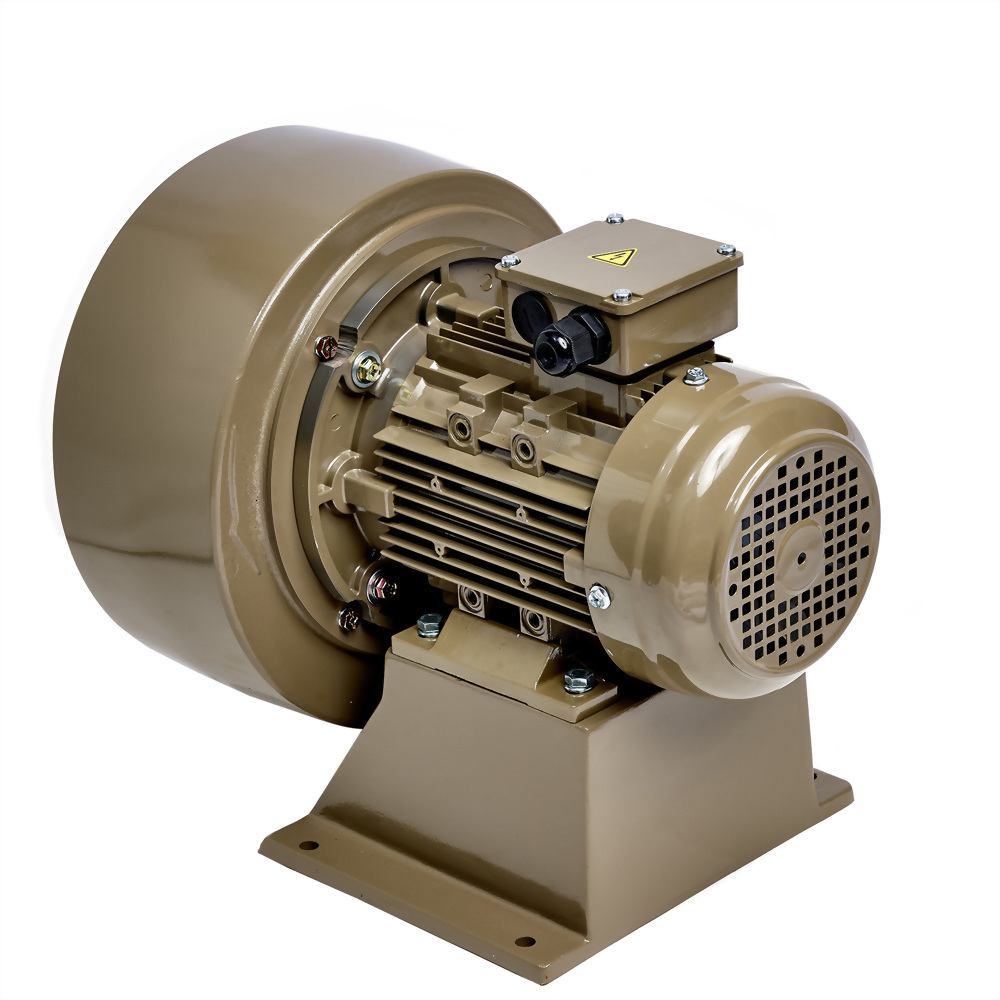

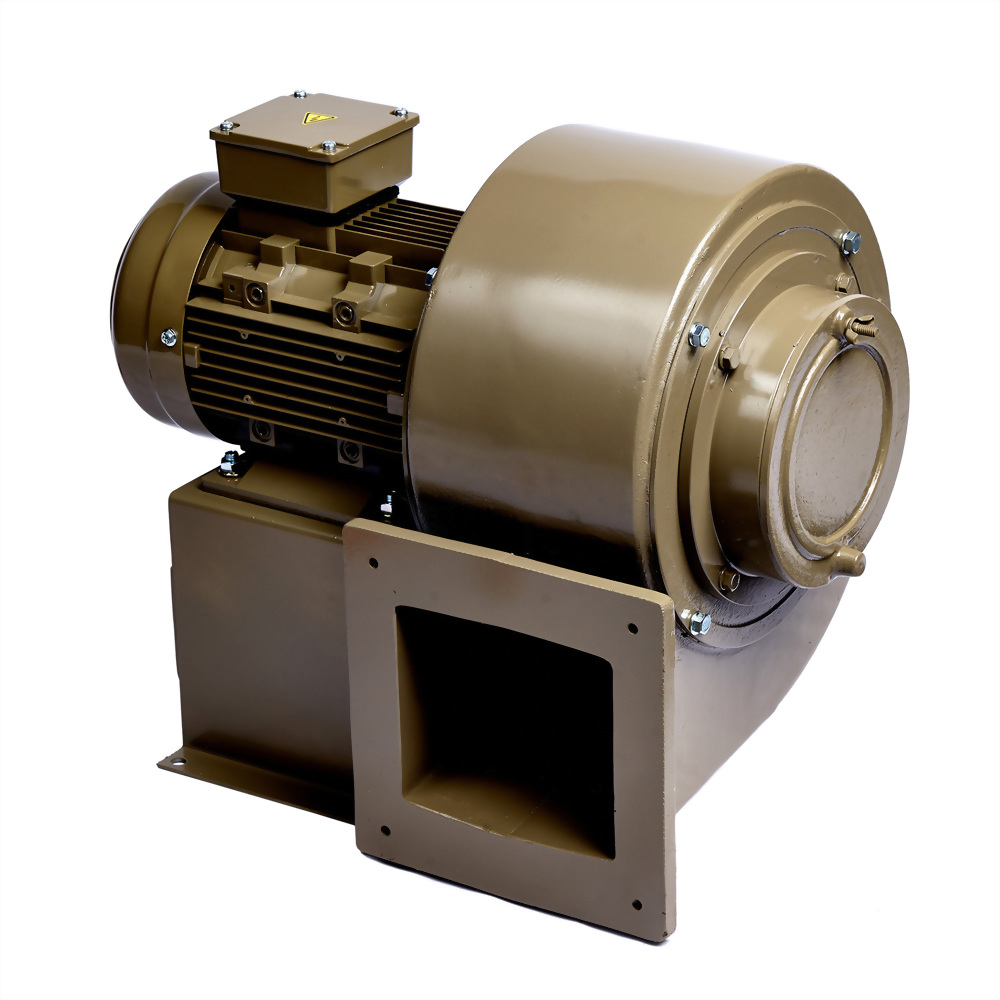

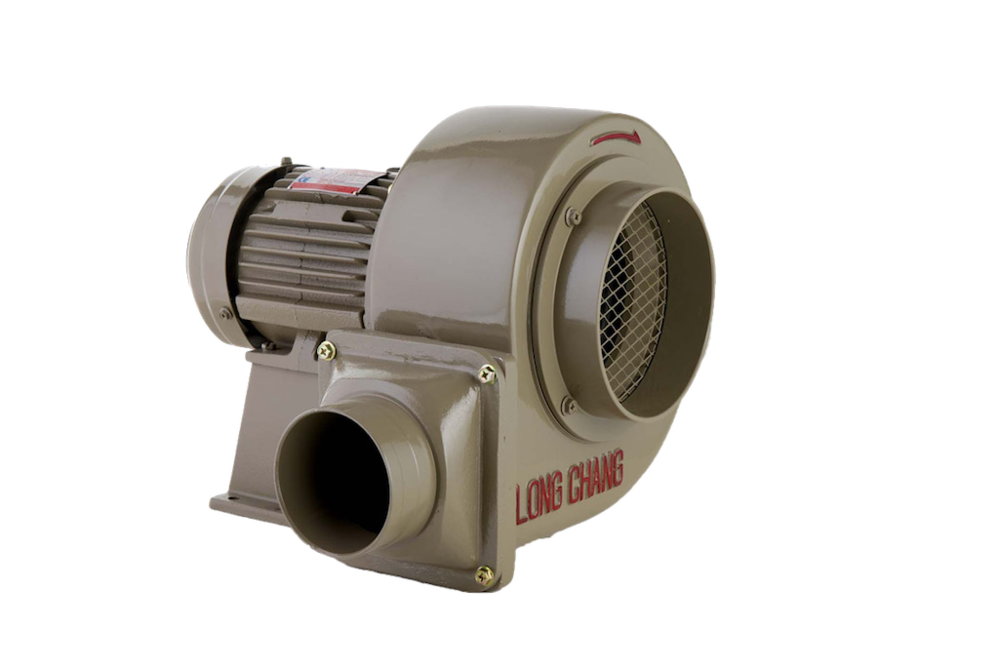

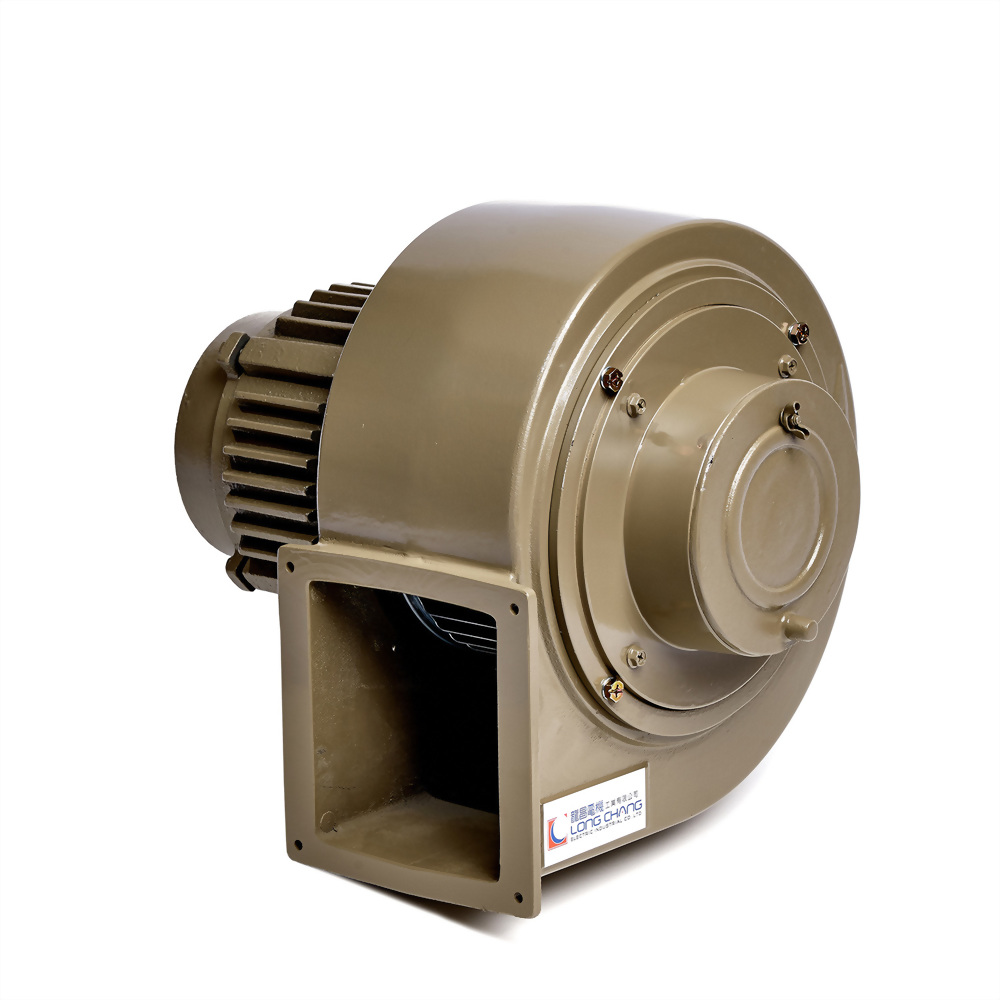

LS-30series(370w~2.2kw blowers)
▶ For over, plastic, printing industries ventilation.
▶ Cooling, drying purpose machinery ventilation.
|
型式 Model |
吐出/口徑 Outlet Dimension |
馬力 Power |
定格出力 Rating |
定格電壓 Rated Voltage |
周波數 Frequency |
相數 Phase |
電流 Current |
回轉數 Speed |
風量 Air Flow |
靜壓 Pressure |
質量 Weight |
下載 Download |
||
| mm | HP | KW | V | HZ | Ø | A | r.p.m | M³/min | CFM | mmAq | Kpa | KG | ||
| LS-30 | 168×155 | 1/2 | 0.37 | 380 | 50 | 1,3 | 1 | 2800 | 28 | 992 | 68 | 0.66 | 21 | |
| 220 | 60 | 2 | 3500 | 33 | 1170 | 100 | 0.98 | |||||||
| LS-301 | 168×155 | 1 | 0.75 | 380 | 50 | 1,3 | 1.7 | 2800 | 32 | 1134 | 90 | 0.88 | 26.2 | |
| 220 | 60 | 2.9 | 3500 | 38 | 1347 | 136 | 1.33 | |||||||
| LS-302 | 220×220 | 2 | 1.5 | 380 | 50 | 1,3 | 3 | 2800 | 42 | 1590 | 91 | 1.08 | 32.5 | |
| 220 | 60 | 6 | 3500 | 48 | 1767 | 138 | 1.47 | |||||||
| LS-303 | 220×220 | 3 | 2.2 | 380 | 50 | 1,3 | 5 | 2800 | 48 | 1767 | 120 | 1.18 | 34 |
PDF |
| 220 | 60 | 9 | 3500 | 53 | 1979 | 170 | 1.67 | |||||||
▶ Use of special impellers.
▶ Power source : 1 phase or 3 phase.
▶ Two types of impellers：Blown winds and conveying materials.
▶ Impeller of conveying can choose stainless steel material.
▶ For both suction and exhaust ventilation.
▶ Outlet: square.
