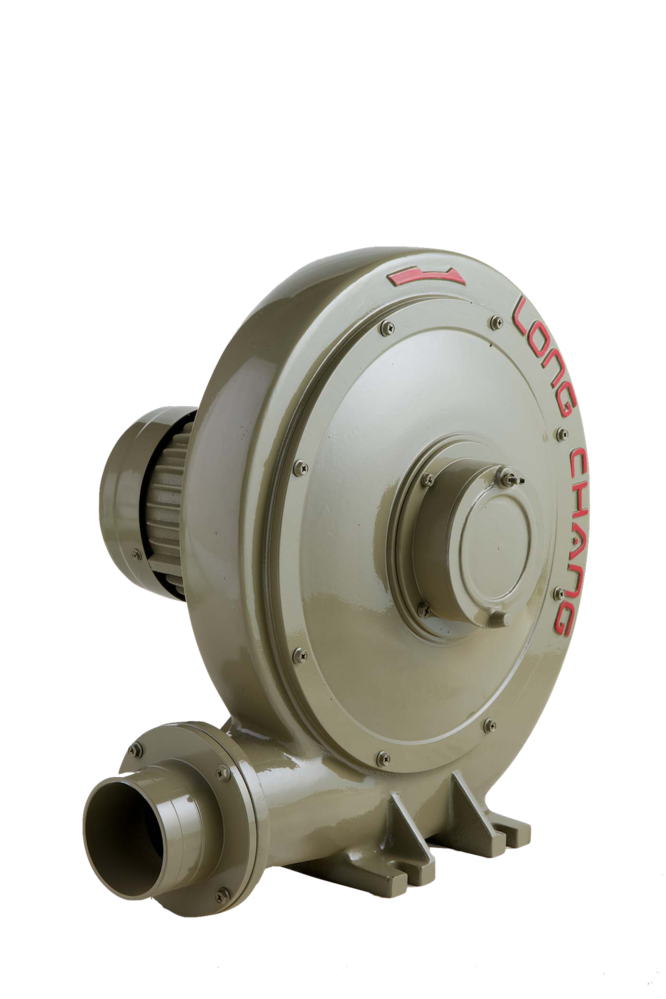

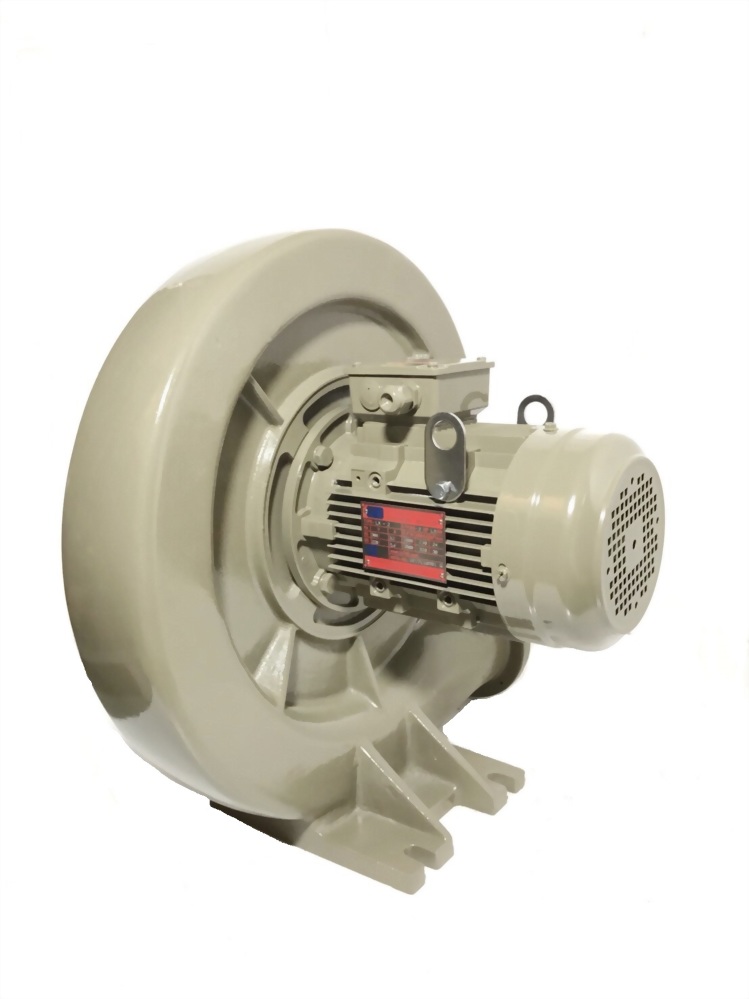

LX-2/LXT-2
▶ Plastic Extruders, Laminating, Blown Film Machines.
▶ Disposal of engineering dust, Environmental machinery, Woodworking Machines.
▶ Dryers Machines, Incinerators, Machinery for Cooling.
▶ Plastic materials and many kinds of grainy raw materials conveying , Air conveying.
|
型式 Model |
吐出/口徑 Outlet Dimension |
馬力 Power |
定格出力 Rating |
定格電壓 Rated Voltage |
周波數 Frequency |
相數 Phase |
電流 Current |
回轉數 Speed |
風量 Air Flow |
靜壓 Pressure |
質量 Weight |
下載 Download |
|||
| mm | HP | KW | V | HZ | Ø | A | r.p.m | M³/min | CFM | mmAq | Kpa | KG | |||
| LX-2 | 148 | 102 | 2 | 1.5 | 380 | 50 | 3 | 3.2 | 2800 | 24 | 851 | 230 | 2.25 | 46.3 | |
| 220 | 60 | 5.4 | 3500 | 30 | 1063 | 320 | 3.13 | ||||||||
| LXT-2 | 148 | 102 | 2 | 1.5 | 380 | 50 | 3 | 3.2 | 2800 | 24 | 851 | 230 | 2.25 | 46.3 | |
| 220 | 60 | 5.4 | 3500 | 30 | 1063 | 320 | 3.13 | ||||||||
▶ High pressure. Larger flow. Light weight. Low-noise.
▶ Aluminum alloy material is widespread used on light products.
▶ CE Certificate for motor, Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
▶ Professional Straight impeller designed, high pressure, larger flow, Low noise, and long life.
▶ Special air-flow-adjust designs offer stable flows and easily control.
▶ It also can be custom-made heat-resistant type.
