LS-50series(40w blowers)
▶ For over, plastic, printing industries ventilation.
▶ Cooling, drying purpose machinery ventilation.
|
型式 Model |
吐出/口徑 Outlet Dimension |
馬力 Power |
定格出力 Rating |
定格電壓 Rated Voltage |
周波數 Frequency |
相數 Phase |
電流 Current |
回轉數 Speed |
風量 Air Flow |
靜壓 Pressure |
質量 Weight |
下載 Download |
||
| mm | HP | KW | V | HZ | Ø | A | r.p.m | M³/min | CFM | mmAq | Kpa | KG | ||
|

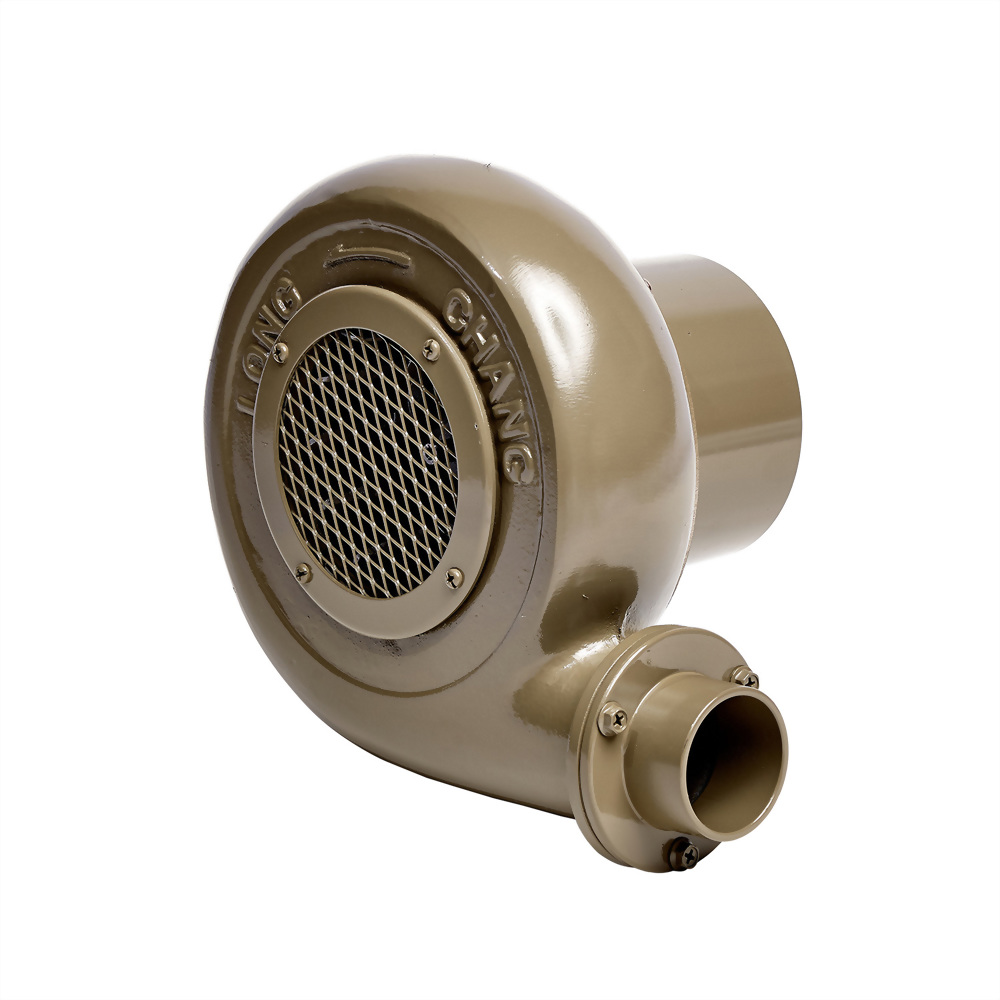

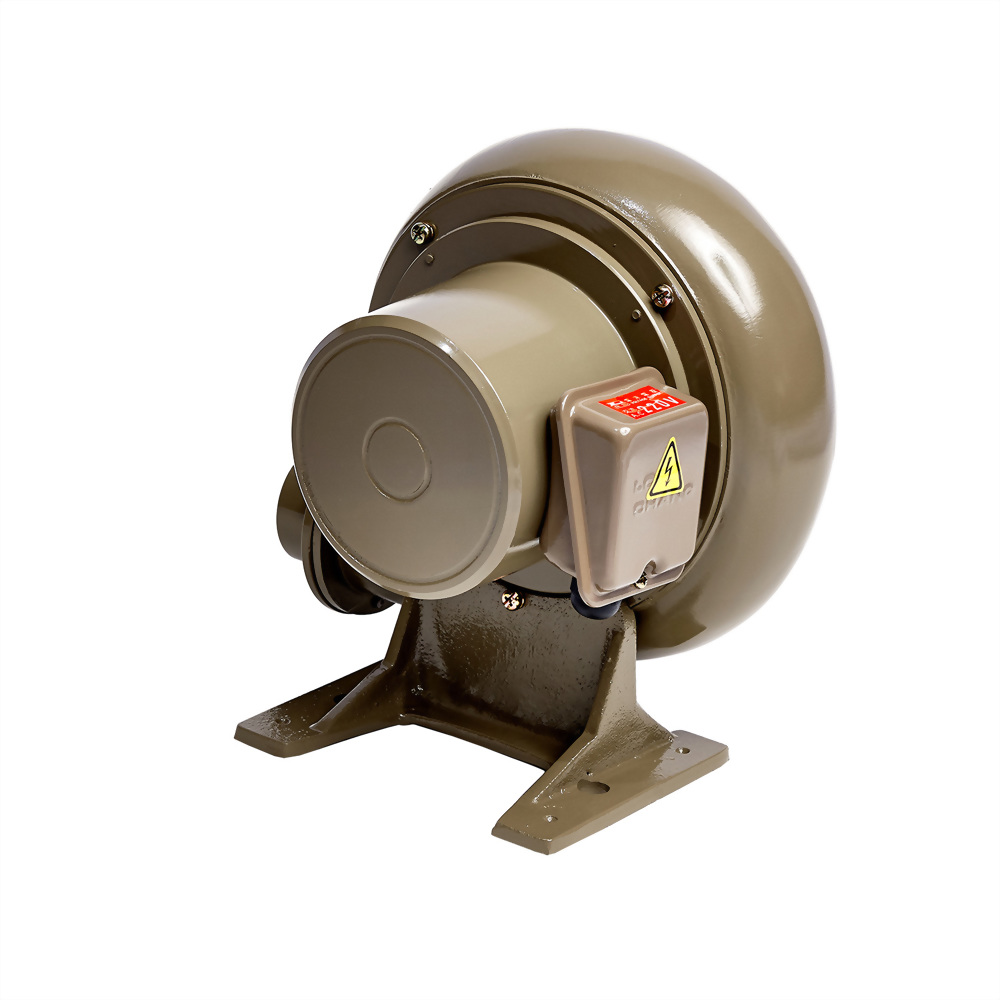

LS-50 ※(with mounting) |
50 | 1/16 | 0.04 | 380 | 50 | 1,3 | 0.3 | 2800 | 2.2 | 78 | 50 | 0.49 | 4.85 | |
| 220 | 60 | 0.4 | 3500 | 2.6 | 92 | 60 | 0.58 | |||||||
| 110/220 | 60 | 2/1 | 3500 | 2.6 | 92 | 60 | 0.58 | |||||||

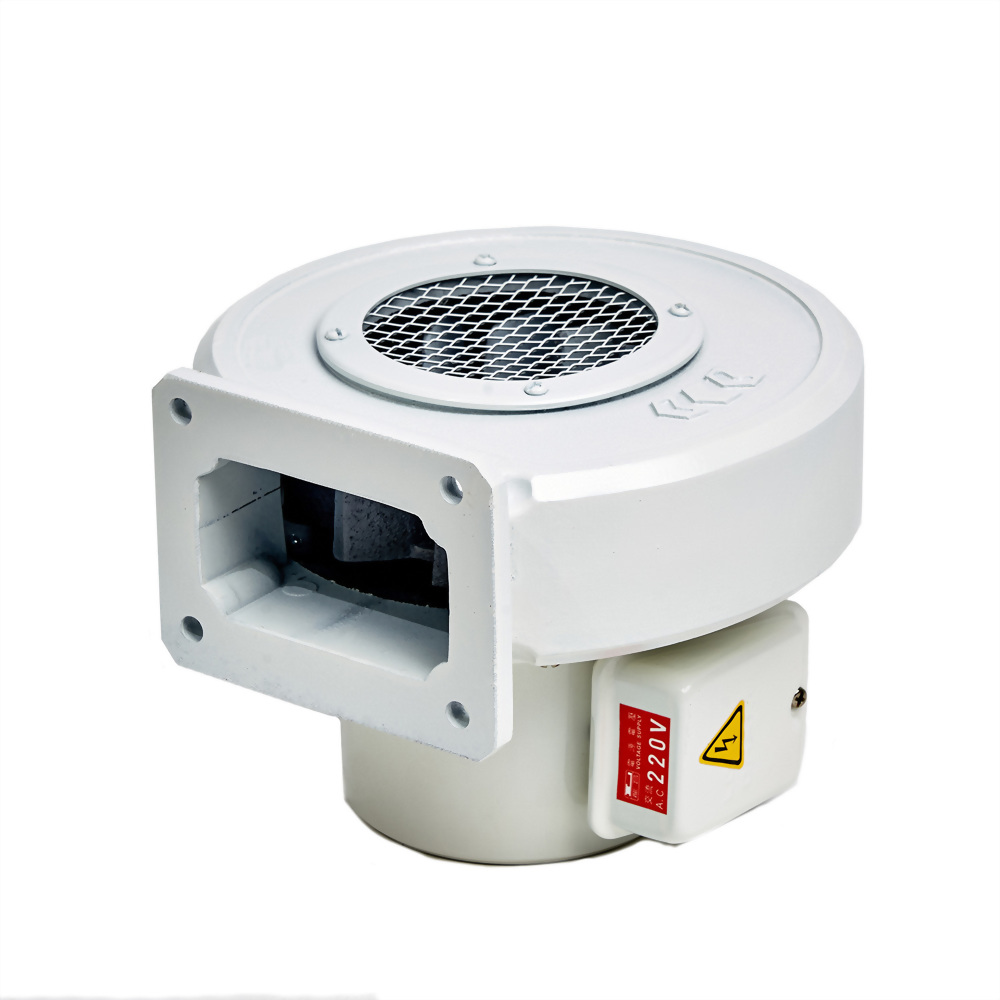

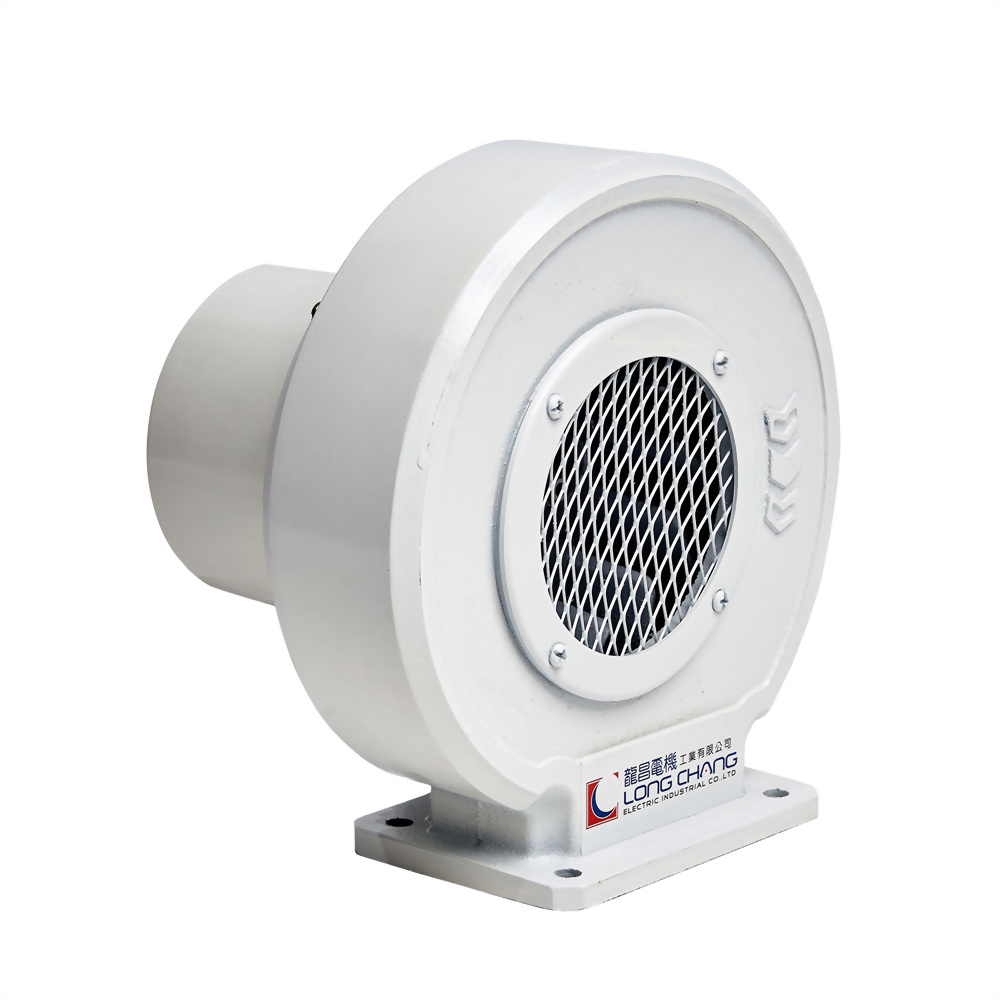

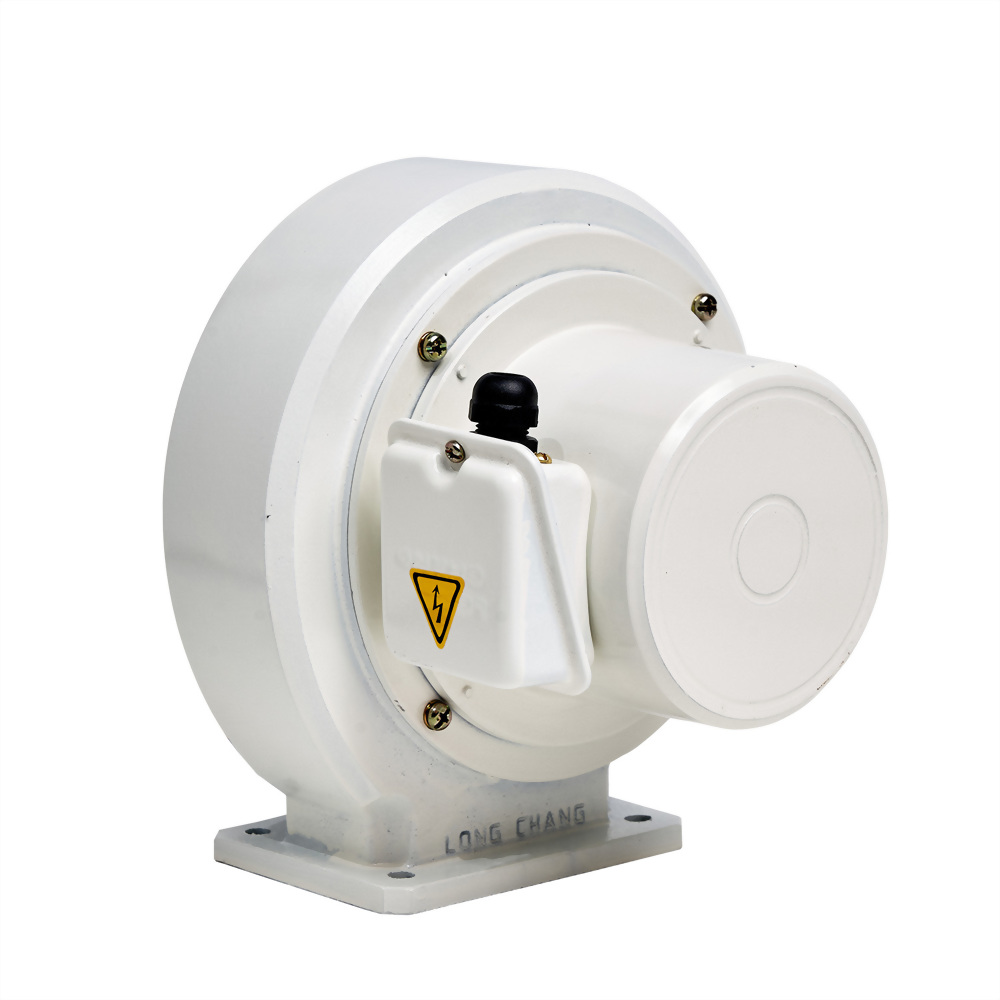

| LS-501 | 89×123 | 1/16 | 0.04 | 380 | 50 | 1,3 | 0.3 | 2800 | 3.4 | 120 | 50 | 0.49 | 3.6 | |
| 220 | 60 | 0.4 | 3500 | 4.3 | 152 | 60 | 0.58 | |||||||
| 110/220 | 60 | 2/1 | 3500 | 4.3 | 152 | 60 | 0.58 | |||||||

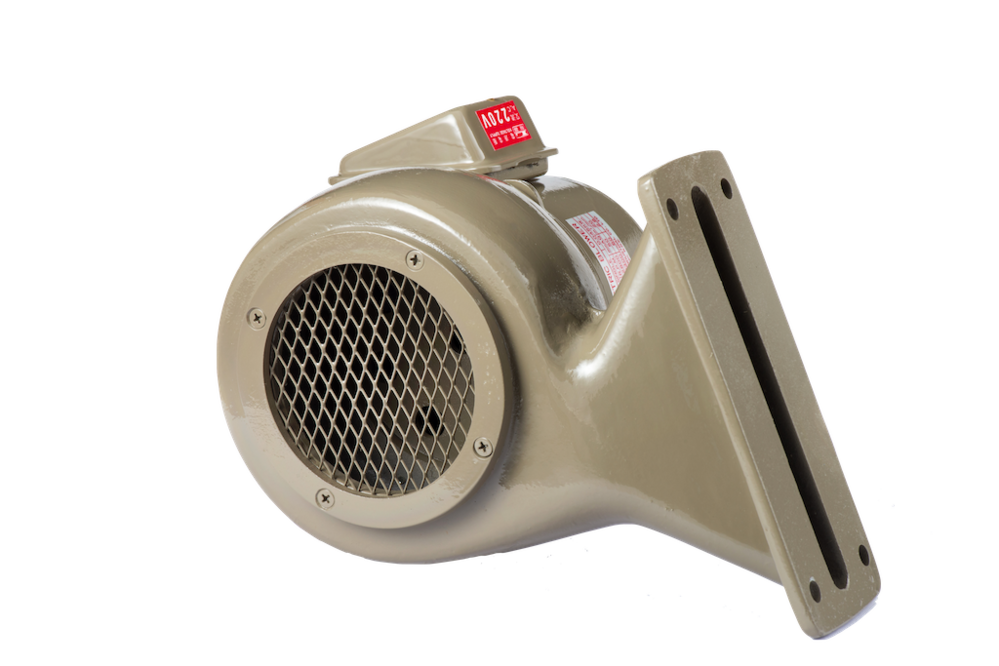

| LS-502 | 70×182 | 1/16 | 0.04 | 380 | 50 | 1,3 | 0.3 | 2800 | 2.4 | 85 | 50 | 0.49 | 3.6 | |
| 220 | 60 | 0.4 | 3500 | 3.4 | 120 | 60 | 0.58 | |||||||
| 110/220 | 60 | 2/1 | 3500 | 3.4 | 120 | 60 | 0.58 | |||||||

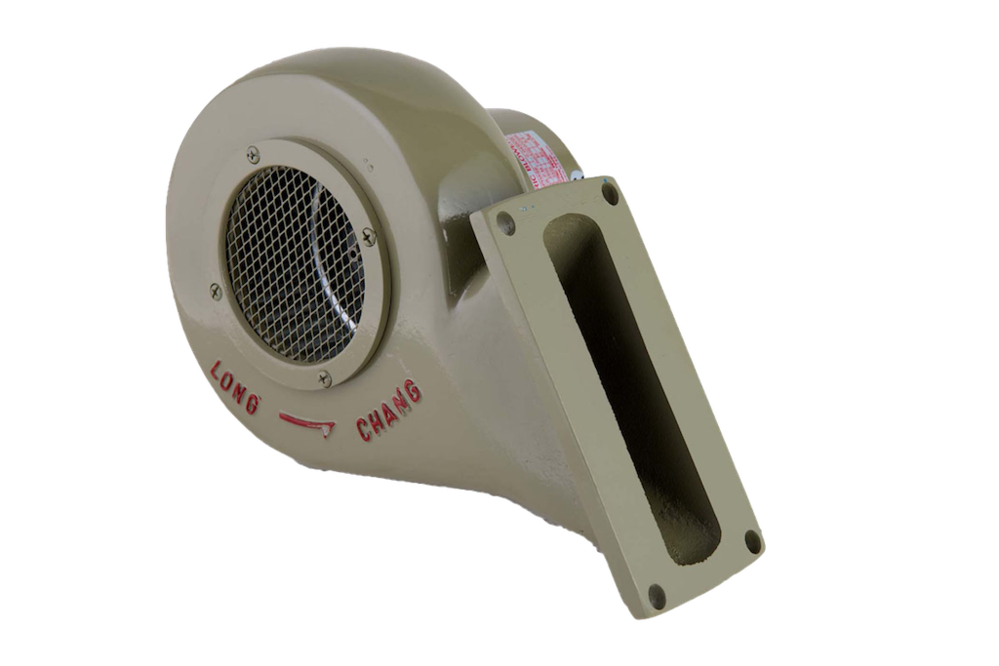

| LS-503 | 92×180 | 1/16 | 0.04 | 380 | 50 | 1,3 | 0.3 | 2800 | 6.2 | 219 | 50 | 0.49 | 4.5 | |
| 220 | 60 | 0.4 | 3500 | 8 | 283 | 60 | 0.58 | |||||||
| 110/220 | 60 | 2/1 | 3500 | 8 | 283 | 60 | 0.58 | |||||||
▶ Power source : 1 phase or 3 phase.
▶ Two types of impellers：Blown winds and conveying materials.

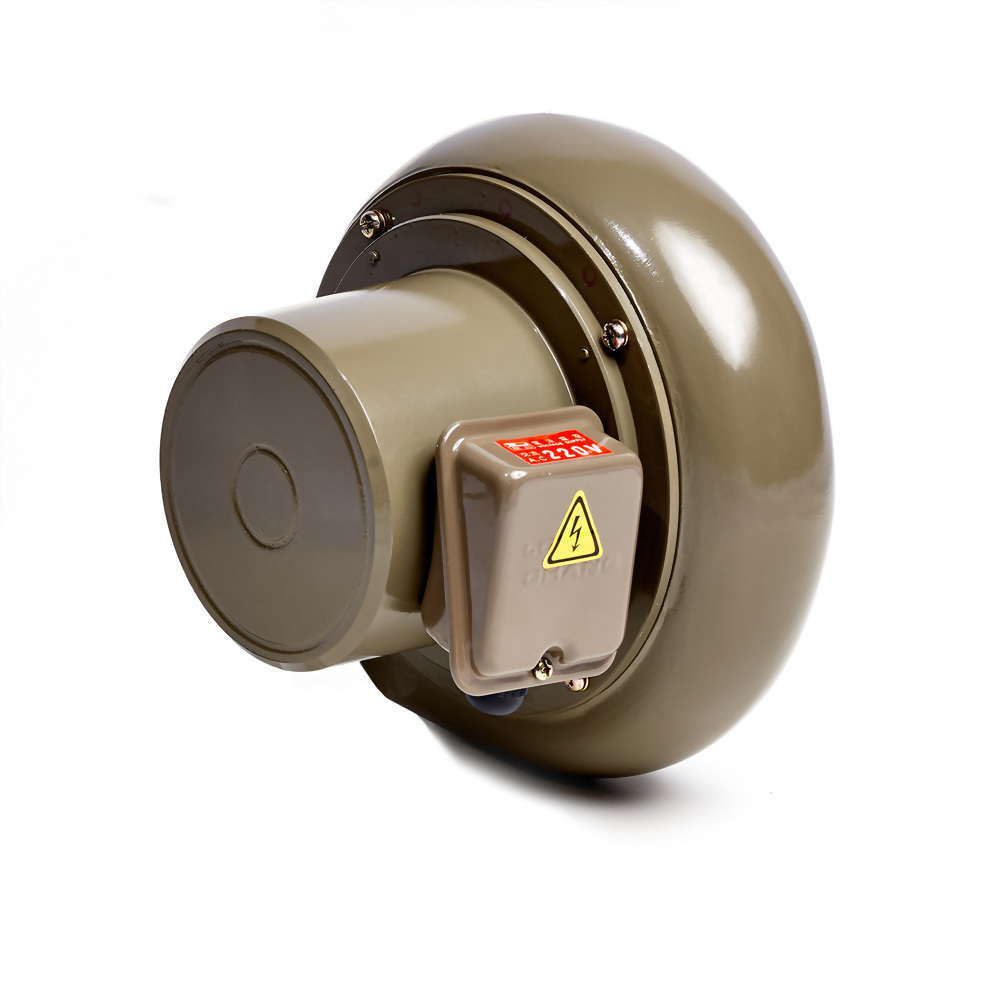

▶ Two forms are available：with feet / without feet.
▶ Outlet 2 ”
